Toll Boom Barriers

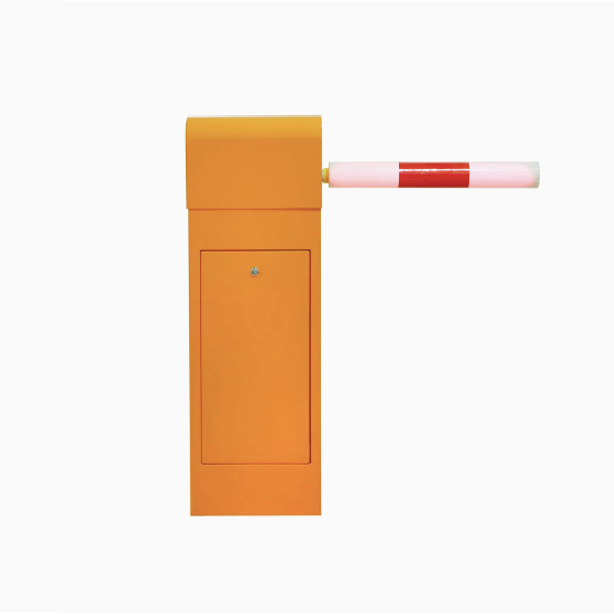

The AX-BB-T-01 Toll Boom Barrier is engineered for high-frequency vehicle access applications such as toll plazas, expressways, industrial facilities, and high-traffic entry/exit points. Equipped with a DC Brushless Servo Motor and Frequency Conversion Control Technology, it ensures ultra-fast operation, smooth arm movement, and exceptional reliability.
Enquiry NowAX-BB-T-01
High-Speed Intelligent Toll Management Barrier
Key Features
- Advanced DC Brushless Servo Motor
- Frequency Conversion Control for precise movement
- Smooth boom arm operation with zero rebound at end positions
- Designed for continuous 24×7 operation
- Supports both right-hand and left-hand installation
- Weather-resistant IP55 protection rating
- Suitable for heavy-duty toll and industrial applications
- High reliability with extended service life
Specifications
- Motor Type: DC Brushless Servo Motor
- Control Technology: Frequency Conversion Control
- Opening / Closing Speed: 0.4 – 0.9 Seconds
- Motor Type: 300 W
- Duty Cycle: 100% Continuous Duty
- Maximum Boom Length: Up to 6 Meters
- Protection Rating: IP55
- Installation: Right-Hand / Left-Hand
- MTBF: 10 Million Cycles
- Application: Toll Plazas, High-Traffic Entrances, Industrial Facilities
Applications
- Toll Plazas
- Expressway Entry & Exit Lanes
- Logistics Parks
- Industrial Facilities
- Commercial Complexes
- High-Security Premises
